ICOM Analog Portable and Mobile Communications

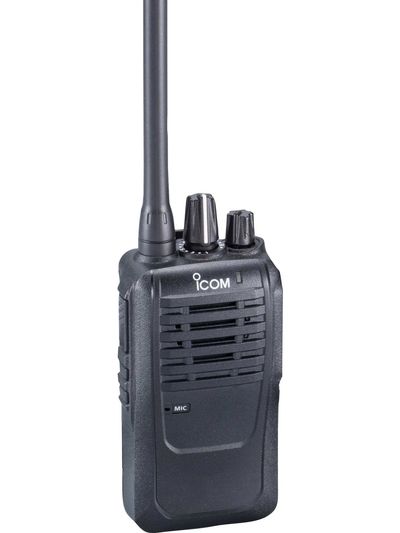

Basic operations, the V3MR is the entry level license free MURS Multi-Use Radio Service. Everything comes ready to use straight out of the box, including a li-ion battery, antenna, and a charger. This simple and professional grade handheld radio is fit for hospitality, construction, personal use, allowing instant communications.

Channels:

16 channels

Output Power:

2W

Frequencies:

151.820 MHz

151.880 MHz

151.940 MHz

154.570 MHz

154.600 MHz

Waterproof Rating:

IP67

The powerful 1500 mW speaker and the basic range for a MURS radio make it ideal for various industries.

• Up to 250,000 sq ft in a building, suited for warehouses, restaurants, and education.
• Up to 20 floors in a building, great for hospitality, retail, or hospitals.
• Up to 2 miles in a work site, perfect for construction, campsites, and hiking.

An outstanding battery capacity that can last up to 24-hours. This is perfect to exceed the standard workday and more. Even those who forget to charge the radio when their shift is over will have some operation time remaining.

For any project in the rain, splashes in the mud, or drops on concrete, the V3MR’s compact and water-resistant chassis can withstand a daily worksite’s environment.

• VOX function
• MDC PTT ID transmit
• CTCSS tone and DTCS code
• 2-step low battery beep
• Lone Worker and Emergency features

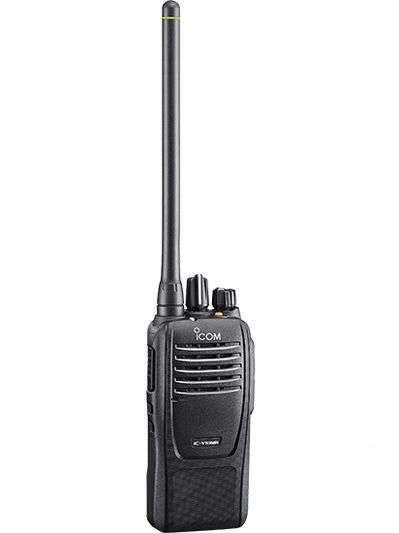

The V10MR is a professional-grade, license-free radio is ready for any kind of operation. Take advantage of the large communication range*: up to 250,000 square feet in buildings, 20 floors, and up to two miles in a traditional worksite. The long battery life can last up to 14 hours. This radio is suited for service, education, health, tourism, personal use, and more!

Channels:

16 channels

Output Power:

2W

Frequencies:

151.820 MHz

151.880 MHz

151.940 MHz

154.570 MHz

154.600 MHz

Waterproof Rating:

IP67

The V10MR is built to exceed military standards specifications (MIL-SPEC). It passed multiple drop tests from 1.5m on six kinds of surfaces to ensure durability during operation. With a strong waterproof rating, use the V10MR in rainstorms. You can also rinse out the radio from any dirt and debris.

Come prepared to alert your team with several of the built-in emergency call functions. When pressed, the orange button automatically sends out an emergency call to other radios. Other functions include Lone Worker, Man Down, and Motion Detection.

Lone Worker: When a user does not respond back for a certain period of time.

Man Down: When a user has fallen and the radio remains horizontal.

Motion Detection: When the radio detects sudden or strenuous movements.

• 1500 mW loud speaker
• VOX function for hands-free operation

• Antenna: FA-SC28V
• Battery pack: BP-279
• Belt clip
• MB-133Charger
• BC-213AC adapter
• BC-242
  *Ranges may differ depending on operating environment

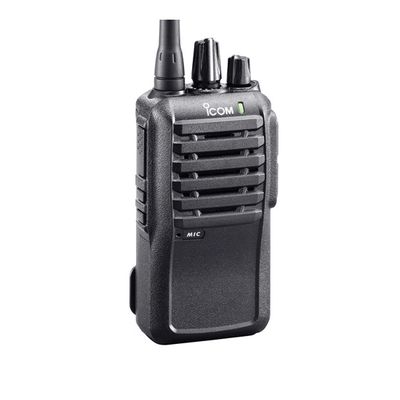

The F3001/F4001 Series is easy to use entry level portable with no special training required. The few knobs and buttons are generously sized for easy operation. This simple interface makes it ideal for high turnover environments and shift work where the radio is constantly passed from person to person. The radio series is ideal to meet the needs of schools, retail, golf courses, community centers and others with similar basic radio needs.

Channels:

 16

Output Power:

5W (VHF) / 4W (UHF)

Frequencies:

 136-174 MHz

400-470 MHz

450-512MHz

Waterproof Rating:

 IP54

Programmable Keys:

 3

The radio has the internal VOX capability for hands-free operation. Optional compatible headset with plug adapter cable OPC-2004 can be used with the radio. Also, the VOX gain and VOX delay time are adjustable.

The F3001 series comes all the popular signaling including 2-Tone, 5-Tone, CTCSS, DTCS and MDC1200 PTT ID & emergency. The radio’s 2-Tone and 5-Tone signaling gives you selective calling, quiet stand-by and other convenient functions with programming. The radio "stun" function disables a radio over the air and the "revive" function restores the stunned radio.

• Priority scan
• DTMF autodial
• Low battery alert
• Talk around function
• Enhanced emergency
• Surveillance function
• 2-step power save
• Time out timer
• Lone worker function
• 3-color LED

The F1000/F2000 Series is a sleek portable radio that fits nicely in your hand designed to be the go to entry to mid level radio. Three model choices, basic – no display, simple – display with simple keypad, and full – display and fully DTMF keypad, include an array of features such as a built-in motion sensor, channel announcement function, and a rugged waterproof & dustproof chassis. The radio series is ideal to meet the needs of a wide range of businesses such as those involved in the education, hospitality, and retail.

Channels:

16 or 128 channels

Output Power:

5W (VHF) / 4W (UHF)

Frequencies:

136-174 MHz

400-470 MHz

450-512 MHz

Waterproof Rating:

 IP67

Programmable Keys:

3 or 7

Versions:

 No display

Display with simple keypad

Display with full DTMF keypad

With a built-in motion sensor, the F1000 series can detect its position, state of motion and non-motion and can send an emergency signal. The motion function detects if the transceiver is moving or shaking, for example, during a chase. The lone worker and man down functions are programmable.

The F1000 series comes all the popular signaling including 2-Tone, 5-Tone, CTCSS and DTCS for group communication and selective calling. MDC features are also programmable including:

• PTT ID
• Emergency (TX/RX)
• Radio check (RX)
• Stun/Revive (RX)
• Up to 100 alias ID numbers or names (LCD types only)
• Additional Features
• Built-in voice scrambler
• Channel announcement
• 8 DTMF autodial memories
• "Shift key" function increases number of programmable key assignments
• Surveillance function

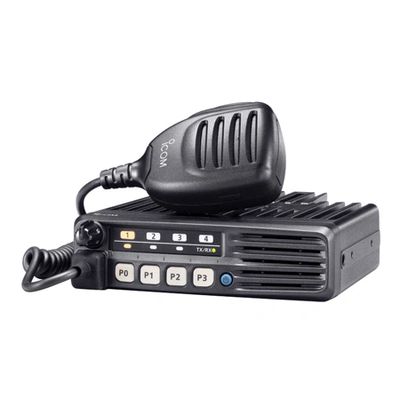

The F5011 series is designed for the everyday operation from education, agriculture to distribution. This entry-level radio has everything needed to get started at 8 channels and P0-P3 programmable buttons.

Channels:

 8

Output Power:

50W VHF / 45W UHF

Frequencies:

136-174 MHz

400-470 MHz

450-512 MHz

Programmable Keys:

 4

Use the built-in 2-Tone, 5-Tone, MDC 1200, CTCSS and DTCS capabilities as standard to set up your own talk groups and quiet stand-by when others are talking. Up to ten 2-Tone or eight 5-tone codes can be decoded on a channel. Features such as stun, kill, revive, answer back, auto TX, scan audio output are programmable to respond to each tone. The F5011 series has a built-in MDC 1200 for transmitting a PTT ID and emergency * signal and for receiving radio check, stun and revive. Assimilate the radio easily into existing MDC 1200 systems.

(*No ACK transmission)

The priority scan function allows you to monitor one or two priority channels while scanning other non-priority channels. The Tx channel and talk back functions allow you to make a quick response while scanning.

The optional ACC cable allows you to connect with various external devices to control audio output, modulated signal input, remote channel control, horn honk and many more functions. OPC-1939 is a D-SUB 15-pin type and OPC-2078 is a D-SUB 25-pin type.

• 4W (typ.) front mounted speaker
• Microphone hanger action programmable
• Talk around function
• Power-on password function
• Nuisance delete function
• Time-out-timer, lock-out penatly timer

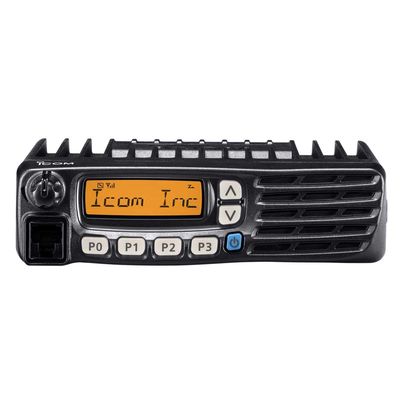

The F5021 series is ideal for small-to-mid sized systems for public safety, large industry to light commercial users. The F5021 series offers multiple signaling, advanced scanning, improved external channel control capability and wide frequency coverage packed in a compact body. This rugged mobile easily exceeds your expectations with its reliable performance and communication quality.

Channels:

128 channels, 8 zones

Output Power:

45W

Frequencies:

 136-174 MHz

400-470MHz

450-512MHz

Programmable Keys:

 6

4 watts (typ.) front mounted speakers delivers clear and loud audio. With the speaker facing the operator, audio can be clearly heard without impediment during operations.

The tough aluminum die-cast chassis and polycarbonate front panel have been tested to the MIL standard 810F. With this heavy-duty construction, the F5021 series provides reliable operation over the long term in all manners of rugged environments.

Use the built-in 2-Tone, 5-Tone, CTCSS and DTCS capabilities as standard to set up your own talk groups, PTT ID and quiet stand-by when others are talking. The F5021 series has added CTCSS/DTCS high speed decode and 2-Tone decode accuracy.

The following MDC features are available with the built-in MDC signaling.

• PTT ID (TX/RX)
• Radio check (RX)
• Radio stun (RX)
• Radio revive (RX)
• Emergency TX/RX (No ACK)
• 5 alias table (max.)

 Multiple 2-Tone, Multiple 5-Tone Up to ten 2-Tone and eight 5-Tone codes can be decoded on a channel. When a matched tone is received, the following items are programmable for each code.

• Beep sound
• Answer back
• Scan
• Bell icon
• Radio stun/kill/revive

The radio kill/stun functions disable a lost or stolen radio over the air, eliminating security threats from undesired listeners. When the stun command is received, all functions will be temporarily locked out until the revive command is received or the unlock password is entered.

When the radio is not operated for a present period, the radio sounds a beep and requires you to push any button. If the radio is still not operated for a specified wait period, an emergency signal automatically transmits and informs co-workers that something may have happened to the individual worker.

Mode Dependent Scan

In the mode dependent setting, the scanning setting is dependent on the operating channel. When you change the operating channel the scanning list automatically changes the list set for that channel. It is convenient when you move to a different operating area and change operating channel, you don't have to change the scanning setting.

Tx Channel Setting and Talk Back Function

The Tx channel setting allows you to program a transmission channel while scanning. Start channel, last detected channel, priority and preprogrammed channels are selectable. Prior to the Tx channel setting, the talk back function allows you to talk on the last detected channel, while scanning resumes after a preset time. The user can easily make a quick response with this function.

Optional Unit

The 5021 series has a 40–pin option slot for adding an optional unit. Optional voice scrambler units, UT-109R or UT-110R provide secure private conversation. Optional DTMF decoder unit, UT-108R offers DTMF decode capability.

External memory Channel Control with Optional ACC Cable

External memory channel With the optional OPC-1939 D-SUB 15-pin ACC cable, the F5021 series can be programmed to control an operating channel from an external device (up to 16 preprogrammed channels). The ACC connector also provides an ignition sensing function, external PTT, PC command, honk honk, audio output and modulated signal input depending on programming.

• Wide/narrow (25/12.5kHz) channel spacing
• Embedded ESN
• ±2.5ppm frequency stability
• Microphone hanger action programmable
• 8 DTMF autodial memories
• Power-on password function
• Nuisance delete function
• Time-out-timer, lock-out penalty timer and more

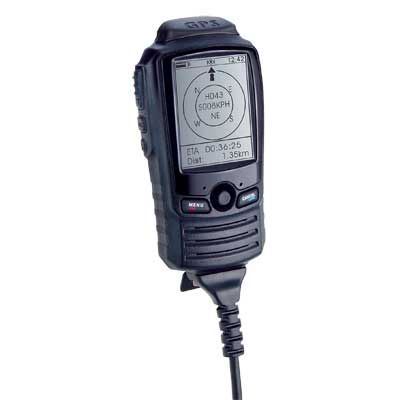

Manage field assets, resources and incidents better by integrating RedHawk SA into your current communications system.

• P25 and analog
• Signal encryption through the radio
• Send and receive text messages
• More accurate GPS field asset location
• Store, send and GOTO waypoints & users
• Built-in, rechargeable 18 hour battery

Scroll through menus to select individual screens and functions using the RedHawk SA's built-in joystick controller.

Maptech Navigator Pro with terrain navigator Pro Team Tracker Upgrade (for US only). ESRI ARC

RedHawk SA Upgrade.

• Locate, poll and set a course, and navigate to a field unit
• See tracks made by other field units in relation to your position, and set a course
• Download all tracks from the unit via USB cable should you need to transfer data to a PC
• Access GIS information for all users on the same radio channel that are in the same group
• See asset and field unit/resource location, speed, heading, directioin and altitude
• See all the tracks made by other users showing search areas covered or travelled
• See the relative distance of a field unit as it relates to the user
• Set a course to a remote user, once in motion calculate the estimated time of arrival and distance to be travelled
• Poll a unit: If a field unit has not been heard from, send a command to receive and update the info
