Maxon Digital/DMR Portable and Mobile Radios

The Maxon MDP-6000 Series radios are our latest high-quality DMR Tier 2/Analog portable radios, built tough with IP-67 rating and 5W of TX power for both UHF and VHF models. Solid in hand, but not large in size or heavy, the series has a loud 1W speaker and uses a bright OLED display for great readability in day or night. MDP-6000 radios have several helpful features such as a built-in flashlight, programmable keys, VOX, 256bit AES-CTR encryption standard, and several antenna options to allow the radio to fit easier on a belt or within a backpack or purse. Programming can be done via PC or clone radio to radio wirelessly or via cloning cable. Additional factory options include Motorola/DMRA-Compatible AES Encryption, TX Inhibit, Man Down, & GPS.

While the Maxon MDP-6000 is great alone, it can be paired with optional accessories to further benefit the needs of the user. As a result, combining this radio with our variety of audio and speaker accessories can provide the exact pairing you need for all types of environments. Click on the accessories tab for more details.

The Maxon MDP-6000 package comes complete with the radio, antenna, battery, dual-slot charger, belt clip, and user manual.

MDP-6124 VHF (136-174 MHz)

MDP-6424 UHF (406-470 MHz)

• 5/1W VHF and UHF
• 2500 Channels, 64 Zones; 1024 Channels Per Zone
• DMR Tier II TDMA/Analog per Channel
• Mixed Mode (Digital & Analog)
• OLED Display (Numeric or Alphanumeric Selectable)
• 240 Contacts & Call Log (Digital Mode)
• AES 256bit Encryption (AES-CTR) standard
• 2-Pin Audio Connector
• CTCSS/DCS
• Lone Worker
• 5 Levels VOX (Voice Operated Transmit)
• One-Touch Text/Calling
• 1 Watt Audio Output
• LED Flashlight
• Battery Saver
• BCL/BCLO (Busy Channel Lockout)/(Busy Channel Lockout Override)
• Compatible with Maxon’s Wireless External Speakers
• Multiple Scan Options
• Voice Recording and Playback
• Password Protected Radio Lock
• Remote Monitor/Stun/Revive
• Programmable Key & Menu Functions
• Wireless and Cabled Cloning
• Vibration
• IP67 Certified
• GPS Send/Receive Coordinates (Factory Option)
• Man-Down (Factory Option)
• TX Inhibit (Factory Option)
• Motorola Compatible AES Encryption (Factory Option)

The Maxon TPD-1000 Series combines exceptional two-way radio functionality with analog and TDMA digital technology. The radio allows you to operate in either analog or digital mode. It is compatible with the common analog system, ensuring a smooth transition from analog-to-digital.

Not only does this radio provide convenient use, it’s designed with the industrial worker in mind. Because of its technical design, this radio provides reliable quality that will withstand considerable use.

The Maxon TPD-1000 series with display model has a large high definition full color display. This provides the ability to text and have a full visual status of the radio. The addition of a new feature supplies the ability to send a text message with the push of one button.

Compared to analog operation, the Maxon TPD-1000 can get up to 40% additional operation time in digital mode. The TPD-1000 comes equipped with a standard high capacity 2000 mAh Li-Ion battery.

In addition, the TPD-1000 offers higher spectrum efficiency and channel capacity in digital mode. The TDMA technology allows the TPD-1000 to get twice the channels based on the same spectrum resource. This is beneficial to relieve the increasing shortage of spectrum resources.

In addition to conventional communications services, the Maxon TPD-1000 with display and keypad features rich data services and selectable functions such as text messaging,  mixed scan, emergency, radio enable/disable, remote monitor, call alert, radio check, man down, IP Site Connect Roaming, voice recording, and more.

• Now with DTMF
• One Touch Text – Ability to send a text message with the push of one button.
• Individual Button Function Lock – Ability to lock features individually.

TPD-1124 VHF (136-174 MHz)

TPD-1424 UHF (400-470 MHz)

• 5/1 Watt (VHF) – 4/1 Watt (UHF) Power Output
• 1024 Channel Capacity
• 12.5/20/25 kHz Channel Spacing
• Dual Modes (DMR Tier II TDMA/Analog)
• Versatile Voice Calls
• Remote Kill, Stun and Revive
• Vibrate
• Various Analog Signaling Types
• CTCSS/DCS
• DTMF, ANI, 2-Tone Encode/Decode/5-Tone Selcall
• QDC-1200, Stun/Kill OTA
• IP Site Connect Roaming
• MIL-STD-810F Compliant

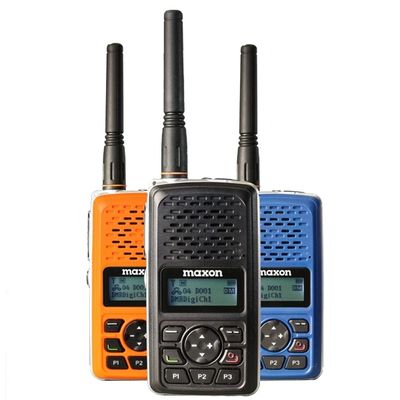

The Maxon TPD-8000E Series of digital radios are durable, lightweight, compact, and easy to use. This small radio is packed with digital radio features such as One Touch SMS Texting, Contact lists for Private and Group Calls, Flashlight, Voice Record, and even built-in AES 256bit encryption to ensure your communications are private. The TPD-8000E can be found in hotels, restaurants, retail stores, shopping centers, property management, schools, and more.

This radio is the complete package for your business needs and comes boxed with the antenna, battery, dual-slot charger, swivel belt clip, and user manual. As long as you have your radio, you’ll never find yourself out of touch with your staff again.

While the Maxon TPD-8000E is great alone, it can also be paired with optional accessories to further benefit the needs of the user. As a result, combining this radio with our variety of audio accessories can provide the exact fit you need for use. See the accessories tab below for more details.

The TPD-8000E Series comes in your choice of three colors, black, blue, and orange. Get all of one color, or set yourself apart with mix and matched set.

TPD-8424E UHF (440-470 MHz)

• DMR Tier II TDMA
• 512: 16 Zones with Maximum of 32 Channels per Zone
• 2200 mAh Li-Ion Battery
• 3 Watt Digital, 2 Watt Analog RF Output Power
• One-Touch Text
• USB Charger, connects to radio or dual-slot desktop charge base
• VOX
• IP54 Certified
• Voice Record & Playback
• AES 256-bit Encryption (TPD-8424E version only)

The SPARTAN TSD-4000 Series of Digital + Analog Display Radios are the best radio for any day-to-day application. The series provides the user with a powerful 5W performance in an attractive, compact size. Its ability to work on both Digital and Analog systems make this feature-rich radio perfect for schools, hotels, restaurants, security companies, custodial services, and industrial use whenever you need a reliable and cost effective device that’s simple to use to communicate right away.

In addition to conventional communications services, the TSD-4000 with display and 3-button keypad features rich data services and selectable functions such as individual or group calling, text messaging, voice record, radio enable/disable, remote monitor, lone worker and more.

While the Maxon TSD-4000 is great alone, it can be paired with optional accessories to further benefit the needs of the user. As a result, combining this radio with our variety of audio accessories can provide the exact fit you need for use. Click on the accessories tab for more details.

The Maxon TSD-4000 package comes complete with the radio, antenna, battery, charger, belt clip, and user manual.

TSD-4124 VHF (136-174 MHz)

TSD-4424 UHF (410-470 MHz)

• 5 Watt Output Power VHF & UHF
• 512 Channels: 16 Channels/32 Zones
• DMR Tier II TDMA/Analog per Channel
• Ch. Tri-Mode – DMR, Analog or Mixed
• Contact Menu for Individual & Group Calling
• 2600 mAh Li-Ion Battery
• Battery Life 23 Hours Digital & 17 Hours Analog
• (Based on a 90/5/5 Duty Cycle)
• Text Messaging
• Multiple Scan Modes
• Adjustable Settings Menu
• Voice Recording
• Lone Worker
• Call Log
• Flashlight
• Remote Stun/Revive
• Encryption (AES 128, 192, 256 Bit)
• Remote Monitoring, VOX
• IP54 Certified

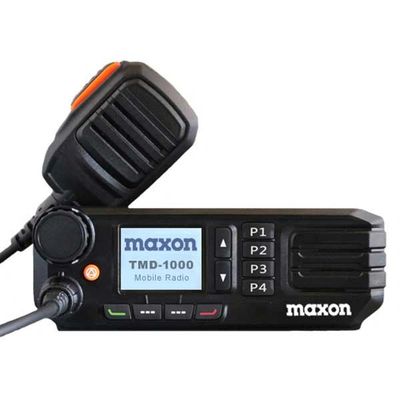

The Maxon TMD-1000 Series is an exceptional, high powered, two-way mobile radio with Analog and DMR Tier 2 TDMA digital technology. You can operate in either mode, so it is compatible with common Analog and Digital DMR systems, ensuring a smooth transition from analog-to-digital DMR whenever you are ready to switch your fleet to a digital system.

TMD-1000 Series radios have a large, high definition, full color display allowing for all the latest digital features such as Text Messaging, 512-Member Contact list and IP Multi-site Connect Roaming, and Encryption, plus all the common analog features including VOX, Lone Worker, Man-Down, QDC-1200 (Compatible with MDC-1200), CTCSS, DCS, DTMF, 2/5Tone, Selcall, and more.

The TMD-1000 Series is the perfect mobile radio for any hard-working environment and more than enough power and features to get any job done.

TMD-1124 45W VHF (136-174 MHz)

TMD-1424 45W UHF (400-470 MHz)

• 45 Watt VHF/UHF
• 1024 Channel Capacity; 512 Contact List Capacity
• Programmable 12.5/25 kHz per Channel
• Dual Modes (DMR Tier II TDMA/Analog)
• Full Color Display
• Digital Encryption (256 Bit)
• Voice Inversion Scrambler
• Programmable Buttons
• Man-Down, Lone Worker, VOX
• Talk-Around, Text Messaging
• Remote Monitor & RX Only
• DTMF, CTCSS/DCS, Priority Scan
• 2-Tone Encode/Decode/5-Tone Selcall
• QDC-1200, Stun/Kill OTA
• IP Multi-Site Roaming Capable
